Products / Prices (USRP, OpenBTS kits, accessories)

Ordering

To order please use our contact form

Please describe the the items or service you are interested in and your contact details and if you prefer paypal or bank payment. Make sure you tell us the country the items should be shipped to. You will receive an offer by email with payment instructions.
If you are ordering as a company then please let us know your companies VAT number so we can send you and offer without VAT. (Intra Community Supply Transaction)
Note than we can also do SDR, gnuradio, OpenBTS, UHD and USRP software and hardware development and consultingfor you and/or develop custom FPGA/firmware versions for USRPs.
Complete systems Motherboards USRP X-series Clockgenerators Daughterboards (RF front-end) Antennas Accessories Ordering Contact form Contact info / Impressum
Description Price * Image Specs Datasheet Schema, pcb and netlist
__________ __________ ____________________ __________ __________
Complete systems for use with OpenBTS, UHD, and/or Gnuradio

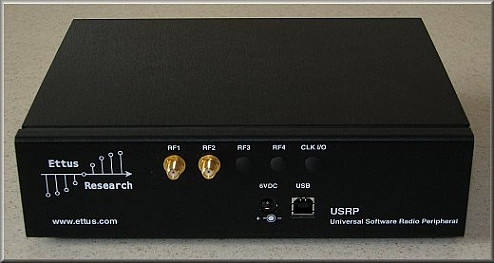

openbts-desktop-kit U210SWBX-CTGPS-K1 DISCONTINUED openbts-desktop-kit-u210-with-GPS See individual items below for datasheets. OpenBTS
openbts-desktop-kit-U210SWBX-CTGPS-K1: With GPS-sync. UHD driver.
Complete assembled and tested OpenBTS Desktop Development Kit containing USRP-N210 (modified for clocktamer), WBX (50 - 2200 MHz), configurable precise GPS-locked 10 Mhz clocksource (clocktamer-1.3-GPS), all needed internal cables, 1 GPS antanna, 2 GSM-3G antennas, 2 test SIM cards, poweradapter, gigabit ethernet cable,
1 ModLiveUSB SDR environment (=bootable 16 GB USB3 flashdrive with Linux, the UHD driver, gnuradio and OpenBTS software installed, ready to run)


Due to the GPS sync, this system is continuously automatically calibrated. This results in very precise frequencies which are important for the correct working of a GSM network.(If the frequency of a basestation is too far off, some cellphones will reject and ignore the basestation)

This system comes with ModLiveUSB which is a bootable USB 3.0 Flash Drive, which contains a complete Linux operating system, the USRP Hardware Driver (UHD), GNUradio, OpenBTS and other software that works with our OpenBTS kits and the USRP product family. The ModLiveUSB is ideal for getting your OpenBTS kit oducts and associated software up and running as quickly as possible.
Note that ModLIveUSB is compiled specifically for Olifantasia OpenBTS kits with extref support enabled. ModLiveUSB will not work with a standard USRP.

If you need an even more precise clock or if you need the UHD timestamps synchronized with GPS then please see our U210SWBX-GPSDO-N1 or U210SSBX-GPSDO-O1.
openbts-desktop-kit U210SWBX-GPSDO-N1 € 3520 openbts-desktop-kit-u210 See individual items below for datasheets. OpenBTS
openbts-desktop-kit-U210SWBX-GPSDO-N1: UHD driver, GPS locked. Complete assembled and tested OpenBTS Desktop Development Kit containing modified USRP-N210, WBX, GPSDO (=very precise GPS synced internal 10 Mhz clock and 1 PPS source), all needed internal cables, 1 terminator 50 Ohm SMA, 2 GSM antennas, 2 test SIM-cards(programmable), poweradapter, gigabit ethernet cable.

Due to the GPS sync, this system is continuously automatically calibrated. This results in very precise frequencies which are important for the correct working of a GSM network. The GPSDO also keeps the USRP internal timestamp time in sync with GPS-time
This system comes with a (Mod)LiveUSB bootable USB 3.0 Flash Drive, which contains a complete Linux operating system, the USRP Hardware Driver (UHD), GNUradio, OpenBTS and other software that works with our OpenBTS kits and the USRP product family. This is ideal for getting your OpenBTS kit and associated software up and running as quickly as possible.
openbts-desktop-kit U1DRFX-A1 € DISCONTINUED openbts-desktop-kit See individual items below for datasheets. OpenBTS
openbts-desktop-kit-U1DRFX-A1: NOT RECOMMENDED FOR NEW DESIGNS.
Complete assembled and tested OpenBTS Desktop Development Kit containing modified USRP-1 , clocktamer (=configurable 52 Mhz clocksource), 2*RFX1800 (reprogrammable as rfx900),all needed internal cables, 1 terminator 50 Ohm SMA, 2 GSM antennas, 2 programmable SIM cards (we can program them for you if you want, specify wanted IMSI, MCC, MNC with your order), poweradapter, usb-cable.

This system needs the old gnuradio based USRP driver, patched for 52 Mhz use which is not supported anymore in recent gnuradio versions. It will not work with the new UHD driver.
openbts-desktop-kit U1DRFX-CTGPS-B1 DISCONTINUED openbts-desktop-kit See individual items below for datasheets. OpenBTS
openbts-desktop-kit-U1DRFX-CTGPS-B1: With GPS-sync. NOT RECOMMENDED FOR NEW DESIGNS.
Complete assembled OpenBTS Desktop Development Kit containing modified USRP-1 , clocktamer with GPS (=configurable builtin precise GPS-synced 52 Mhz clocksource), 2 x RFX1800 (reprogrammable as rfx900), all needed internal cables, 2 GSM antennas, 50 Ohm terminator (SMA), 2 programmable SIM cards, poweradapter, usb-cable.

Due to the GPS sync, this system is continuously automatically calibrated. This results in very precise frequencies which are important for the correct working of a GSM network.

This system needs the old gnuradio based USRP driver, patched for 52 Mhz use which is not supported anymore in recent gnuradio versions. It will not work with the new UHD driver.
Motherboards
USRP E310 € 2744 e310 USRP E310 product page USRP E310 manual USRP E310 Datasheet
USRP E310 KIT: (783773-01)
USRP E310 KIT (2x2 MIMO, 70MHz - 6GHz) - Ettus Research

A stand-alone Software-Defined Radio that provides 2x2 MIMO support covering 70MHz to 6GHz. Powerful, affordable and compact.
The USRP E310 pocket sized, stand-alone software defined radio provides 2x2 MIMO support covering 70 MHz – 6 GHz and up to 56 MHz of instantaneous bandwidth. At roughly the footprint of a mobile phone, with a typical power consumption of 2-6 watts, the USRP E310 is ideal for mobile and embedded applications with limited size, weight, and power requirements. A lighter weight, partial-enclosure version is available for custom and volume deployments. Baseband processing is performed in the Zynq 7020 IC which combines a reconfigurable Xilinx 7 series FPGA and integrated dual-core ARM A9 processor running a Linux operating system. Common to all USRP devices, the open-source software architecture provides cross-platform support with the USRP Hardware Driver(UHD™). UHD allows for compatibility with a large selection of applications and frameworks, such as GNU Radio.
View Product Details

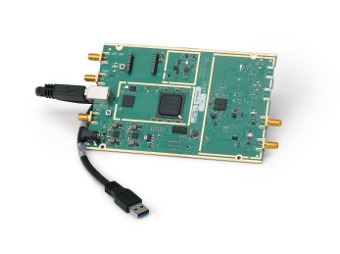

USRP B200 € 720 b200 USRP B200/B210 FAQ USRP B200/B210 Specification Sheet
UB200-KIT: (782980-01)
USRP B200 SDR Kit 1x1 (75 MHz - 6GHz)

The USRP B200 provides a fully integrated, single board, Universal Software Radio Peripheral platform with continuous frequency coverage from 70 MHz –6 GHz. Designed for low-cost experimentation, it combines a fully integrated direct conversion transceiver providing up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan6 FPGA, and fast and convenient bus-powered SuperSpeed USB 3.0 connectivity. Full support for the UHD (USRP Hardware Driver) software allows you to immediately begin developing with GNU Radio, prototype your own GSM base station with OpenBTS, and seamlessly transition code from the B200 to higher performance, industry ready USRP platforms.

Features:
The first fully integrated USRP device with continuous RF coverage from 70 MHz –6 GHz
Full duplex operation with up to 56 MHz of real time bandwidth (61.44MS/s quadrature)
Fast and convenient bus-powered connectivity using SuperSpeed USB 3.0
GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
Open and reconfigurable Spartan 6 XC6SLX75 FPGA with free Xilinx tools (for advanced users)
Early access prototyping platform for the Analog Devices AD9361 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband

USB 3.0 Benchmarking
Tutorial Set on Software-Defined Radio, USRP, and GNU Radio
CASEB200: Metal case for the USRP B200 € 72 caseb200 Olifantasia B200 enclosure product page
Olifantasia B200 enclosure: (CASEB200)

Metal case for the USRP B200 Software radio
SK1B200: USRP B200 SDR starter Kit 1: B200 + case € 782 caseb200 Olifantasia B200 enclosure product page
USRP B200 SDR starter Kit 1: (B200 + case)

Kit contents: 1x USRP B200 SDR Kit 1x1 (75 MHz - 6GHz) 1x Metal case for B200

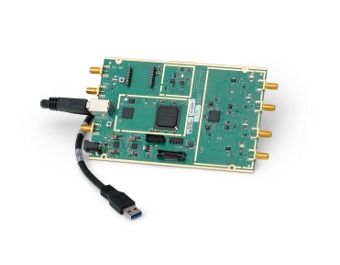

USRP B210 €1178 b210 USRP B200/B210 FAQ USRP B200/B210 Specification Sheet
UB210-KIT: (782981-01)
USRP B210 SDR Kit 2x2 (75 MHz - 6GHz) (Limit 2 per order)

The USRP B210 provides a fully integrated, single-board, Universal Software Radio Peripheral (USRP™) platform with continuous frequency coverage from 70 MHz – 6 GHz. Designed for low-cost experimentation, it combines a single chip direct-conversion transceiver providing up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan6 FPGA, and fast SuperSpeed USB 3.0 connectivity with convenient bus-power. Full support for the USRP Hardware Driver™ (UHD) software allows you to immediately begin developing with GNU Radio, prototype your own GSM base station with OpenBTS, and seamless transition code from the USRP B210 to higher performance, industry-ready USRP platforms

Features:
First fully integrated, two-channel USRP device with continuous RF coverage from 70 MHz – 6 GHz
Full duplex, MIMO (2x2) operation with up to 56 MHz of real-time bandwidth (61.44MS/s quadrature)
Fast and convenient bus-powered connectivity using SuperSpeed USB 3.0
GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
Open and reconfigurable Spartan 6 XC6SLX75 FPGA with free Xilinx tools (for advanced users)
Early access prototyping platform for the Analog Devices AD9361 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband

USB 3.0 Benchmarking
Tutorial Set on Software-Defined Radio, USRP, and GNU Radio
CASEB210: Metal case for the USRP B210 € 72 caseb210 Olifantasia B210 enclosure product page
Olifantasia B210 enclosure: (CASEB210)

Metal case for the USRP B210 Software radio
SK1B210: USRP B210 SDR starter Kit 1: B210 + case € 1240 caseb210 Olifantasia B210 enclosure product page
USRP B210 SDR starter Kit 1: (B210 + case)

Kit contents: 1x USRP B210 SDR Kit 1x1 (75 MHz - 6GHz) 1x Metal case for B210
USRP1 kit DISCONTINUED usrp USRP Wiki USRP datasheet USRP Schematics PDF USRP Schematics CAD (gEda) rev 11655
USRP1 kit. Motherboard, including metal casing, 2 internal SMA-M to SMA-F bulkhead cables, USB cable, power supply and Hardware Package.
The USRP1 is an old design and not recommended for new setups. We recommend B200 or B210 instead.

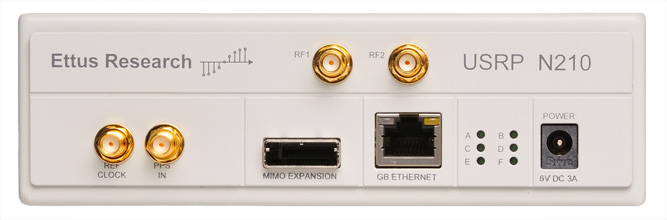

USRP N210 € 1863.00 un210 USRP2 Wiki USRP N210 datasheet
USRP-N210-Kit: (782747-01) includes USRP N210, enclosure, 2 RF Cables, Ethernet Cable, Power Supply, and Hardware Package.
USRP X-series
USRP X300 € 3952 b210 USRP X300/X310 FAQ USRP X310 Specification Sheet USRP X300/X310 Configuration Guide
USRP X300: (783144-01)
KINTEX7-325T FPGA, 2 CHANNELS, 10GIGE AND PCIE BUS

The USRP X310 is a high-performance, scalable software defined radio (SDR) platform for designing and deploying next generation wireless communications systems. The hardware architecture combines two extended-bandwidth daughterboard slots covering DC – 6 GHz with up to 120 MHz of baseband bandwidth, multiple high-speed interface options (PCIe, dual 10 GigE, dual 1 GigE), and a large user-programmable Kintex-7 FPGA in a convenient desktop or rack-mountable half-wide 1U form factor. In addition to providing best-in-class hardware performance, the open source software architecture of X310 provides cross-platform UHD driver support making it compatible with a large number of supported development frameworks, reference architectures, and open source projects.

Features:
Two wide-bandwidth RF daughterboard slots
Up 120MHz bandwidth each (wideband versions of CBX, WBX, SBX)
Upto 160MHz bandwidth each with the wideband versions of UBX, the UBX-160
Daughterboard selection covers DC to 6 GHz
Large customizable Xilinx Kintex-7 FPGA for high performance DSP (XC7K325T)
Multiple high-speed interfaces
Dual 10 Gigabit Ethernet - 100 MS/s Full Duplex
PCIe Express (Desktop) - 100 MS/s Full Duplex, 10 us latency
ExpressCard (Laptop) - 50 MS/s Full Duplex, 10 us latency
Dual 1 Gigabit Ethernet - 25 MS/s Full Duplex
UHD architecture provides compatibility with
GNURadio
C++/Python API
Other third-party software and frameworks
Flexible clocking architecture
Configurable sample rate
Optional GPS-disciplined OCXO (0.01 ppb, 50 ns global timing)
Compact and rugged half-wide 1U form factor for convenient desktop or rack mount usage
Digital I/O accessible on the front panel for custom control and interfacing from the FPGA

Links:
USRP X300/X310 FAQ USRP X300/X310 Configuration Guide
USRP System Bandwidth
USRP X300/X310 Hardware and Software Setup
Links to Driver Setup and Driver/FPGA Sourcecode

Recommended Daughterboards and Accessories:
120 MHz Daughterboards - WBX-120, SBX-120, CBX-120, UBX-160, Board-Mounted GPSDO (OCXO), GPIO Expansion Kit, Additional 1 Gigabit, 10 Gigabit, PCIe and Expresscard Interface Kits,1U Rackmount for USRP X300 and X310, International Power Cords

Please contact us for more information on the USRP X-series.
USRP X310 € 4873 b210 USRP X300/X310 FAQ USRP X310 Specification Sheet USRP X300/X310 Configuration Guide
USRP X310: (783145-01)
KINTEX7-410T FPGA, 2 CHANNELS, 10 GIGE AND PCIE BUS

The USRP X310 is a high-performance, scalable software defined radio (SDR) platform for designing and deploying next generation wireless communications systems. The hardware architecture combines two extended-bandwidth daughterboard slots covering DC – 6 GHz with up to 120 MHz of baseband bandwidth, multiple high-speed interface options (PCIe, dual 10 GigE, dual 1 GigE), and a large user-programmable Kintex-7 FPGA in a convenient desktop or rack-mountable half-wide 1U form factor. In addition to providing best-in-class hardware performance, the open source software architecture of X310 provides cross-platform UHD driver support making it compatible with a large number of supported development frameworks, reference architectures, and open source projects.

Features:
Two wide-bandwidth RF daughterboard slots
Upto 120MHz bandwidth each (wideband versions of CBX, WBX, SBX)
Upto 160MHz bandwidth each with the wideband versions of UBX, the UBX-160
Daughterboard selection covers DC to 6 GHz
Large customizable Xilinx Kintex-7 FPGA for high performance DSP (XC7K410T)
Multiple high-speed interfaces
Dual 10 Gigabit Ethernet - 100 MS/s Full Duplex
PCIe Express (Desktop) - 100 MS/s Full Duplex, 10 us latency
ExpressCard (Laptop) - 50 MS/s Full Duplex, 10 us latency
Dual 1 Gigabit Ethernet - 25 MS/s Full Duplex
UHD architecture provides compatibility with
GNURadio
C++/Python API
Other third-party software and frameworks
Flexible clocking architecture
Configurable sample rate
Optional GPS-disciplined OCXO (0.01 ppb, 50 ns global timing)
Coherent operation with external or daisy-chained 10 MHz/1 PPS
Compact and rugged half-wide 1U form factor for convenient desktop or rack mount usage
Digital I/O accessible on the front panel for custom control and interfacing from the FPGA

Links:
USRP X300/X310 FAQ USRP X300/X310 Configuration Guide
USRP System Bandwidth
USRP X300/X310 Hardware and Software Setup
Links to Driver Setup and Driver/FPGA Sourcecode

Recommended Daughterboards and Accessories:
120 MHz Daughterboards - WBX-120, SBX-120, CBX-120, UBX-160, Board-Mounted GPSDO (OCXO), GPIO Expansion Kit, Additional 1 Gigabit, 10 Gigabit, PCIe and Expresscard Interface Kits,1U Rackmount for USRP X300 and X310, International Power Cords

Please contact us for more information on the USRP X-series.
Clockgenerators
OCTOCLOCK € 989 Octoclock OctoClock FAQ
OCTOCLOCK (782978-01) 8 CHANNEL CLOCK DISTRIBUTION SYSTEM (External Reference Required)
The OctoClock is an affordable solution for high-accuracy time and frequency reference distribution. The OctoClock accepts 10 MHz and PPS signals from an external source, and distributed each signal 8 ways. This is a useful accessory for users that would like to build multi-channel systems that are synchronized to a common timing source.

Requires external 10 MHz/1 PPS source.
OCTOCLOCK-G € 1568 Octoclock OctoClock FAQ
OCTOCLOCK-GPS (782979-01) 8-CHANNEL CLOCK DISTRIBUTION SYSTEM W/ INTEGRATED GPSDO
The OctoClock-G is an upgraded version of the OctoClock, which includes an internal GPS-disciplned, over-controlled crystal oscillator. Like the OctoClock, the OctoClock-G provides eight PPS and eight 10 MHz outputs. OctoClock FAQ
Application Note – Synchronization and MIMO Capability with USRP Devices
UHD API Notes for Multi-USRP Configurations
Sample Applications
Direction Finding with USRP
Building an Affordable 8x8 MIMO Testbed with USRP

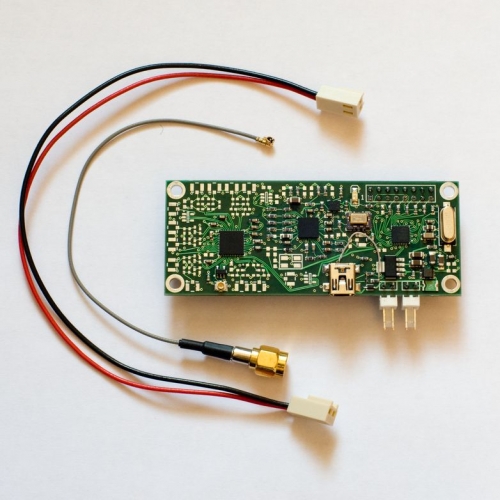

ClockTamer DISCONTINUED Clocktamer-1.2 ClockTamer project web-site FeaturesAndTechnicalSpecification ClockTamer-1.2 Schematics
CLocktamer is a low-cost small-size configurable clock generator. It is was specifically designed to be used as a configurable clocksource for USRP. It is mostly used as precise 52 MHz clocksource for the USRP but nothing prevents you from using it with other devices or on other frequencies. ClockTamer is an Open-Source Software and an Open-Source Hardware (OSH) project. All schematics, bill of materials and components placement are published at ClockTamer project web-site.
ClockTamer-GPS DISCONTINUED Clocktamer-1.2 ClockTamer project web-site FeaturesAndTechnicalSpecification ClockTamer-1.2 Schematics
OUT_OF_STOCK, no new stock expected in the near future. In the mean time you can order Clocktamer-standard without GPS or GPSDO or order a complete OpenBTS kit like the U210SWBX-CTGPS-K1, which includes a Clocktamer-GPS.
Clocktamer with GPS unit (for automatic freq. calibration). CLocktamer-GPS is a low-cost small-size configurable clock generator. It is was specifically designed to be used as a configurable clocksource for USRP. It is mostly used as precise 52 MHz clocksource for the USRP but nothing prevents you from using it with other devices or on other frequencies. ClockTamer is an Open-Source Software and an Open-Source Hardware (OSH) project. All schematics, bill of materials and components placement are published at ClockTamer project web-site.

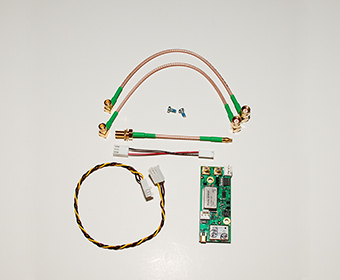

GPSDO Kit for USRP N200/N210 and E100/E110 € 825.00 GPSDO Datasheet and manual
782779-01 | USRP GPS-Disciplined Oscillator Kit
Includes GPS locked reference oscillator for USRP N200/N210 series (rev 2, 3, 4 and above) and USRP E100/E110 (rev 4 and above) series only. Kit includes 1 power cable, 3 serial cables (only one shown in picture), 3 RF cables and 2 screws required to install inside the USRP N200/E100 series chassis.
Board Mounted GPSDO (TCXO) Recommended for USRP B200/B210 € 645.00 GPSDO
783454-01 | GPSDO for USRP B2XX series (PCB-Mounted GPS-Disciplined TCXO)
This is a GPS-disciplined, temperature-controlled crystal oscillator (GPSDO), which is compatible with a USRP B200 or B210. The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal. This allows developers to build system that serve applications with tight synchronization requirements, or global timing alignment within 50 ns.

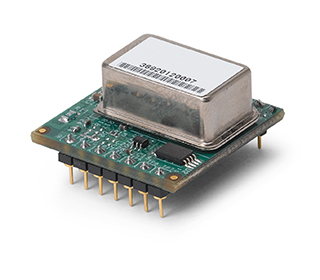

Board Mounted GPSDO (OCXO) Recommended for USRP X300/X310 € 836.00 GPSDO Datasheet and manual
783173-01 | GPSDO for USRP X Series (PCB-Mounted GPS-Disciplined OCXO)
This is a GPS-disciplined, oven-controlled crystal oscillator (GPSDO), which is compatible with a USRP X300 or X310. The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal. This allows developers to build system that serve applications with tight synchronization requirements, or global timing alignment within 50 ns.
Daughterboards (RF front-end)

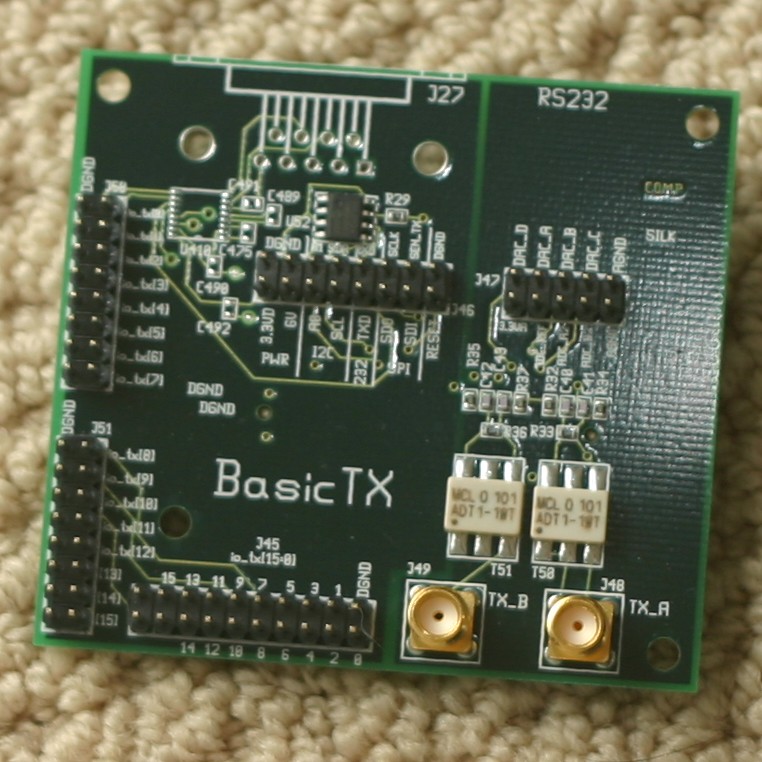

BasicTX € 83.00 basicTx 2 MHz to 200 MHz Transmitter (782751-01) basicTX datasheet basicTX Schematics PDF basicTX Schematics CAD (gEda) rev 11655

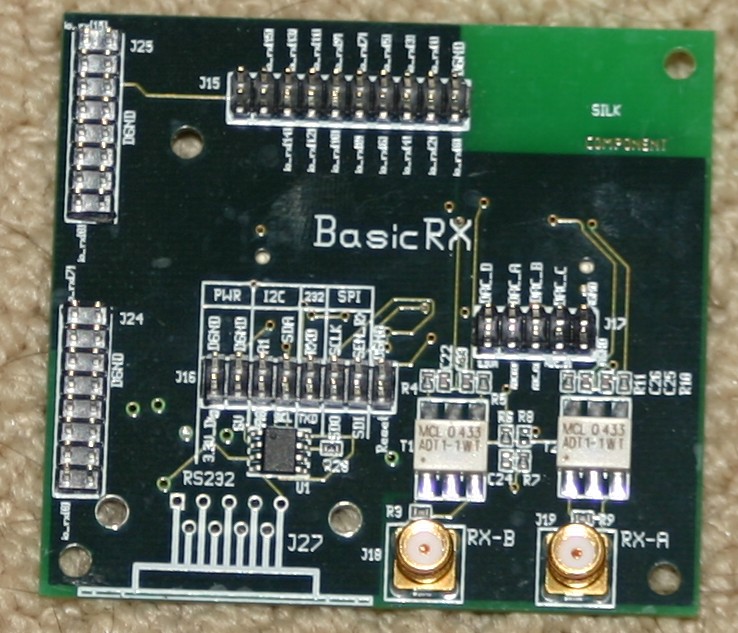

BasicRX €  83.00 basicRx 2 MHz to 300+ MHz Receiver (782750-01) basicRX datasheet basicRX Schematics PDF basicRX Schematics CAD (gEda) rev 11655

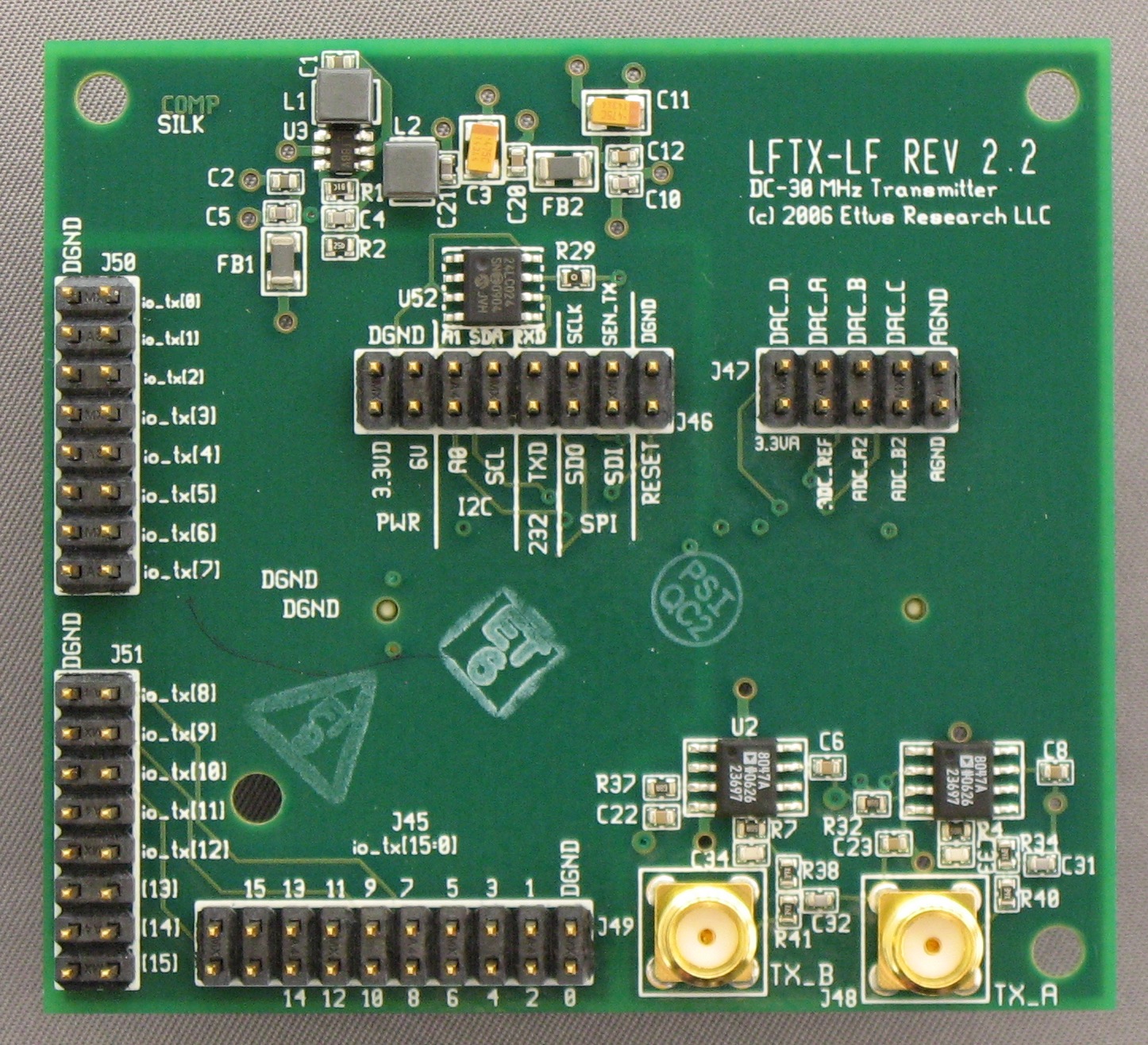

LFTX €  83.00 LFTX DC-30 MHz Transmitter (782753-01) LFTX datasheet LFTX Schematics PDF LFTX Schematics CAD (gEda) rev 11655
LFRX €  83.00 LFRX DC-30 MHz Receiver (782752-01) LFRX datasheet LFRX Schematics PDF LFRX Schematics CAD (gEda) rev 11655

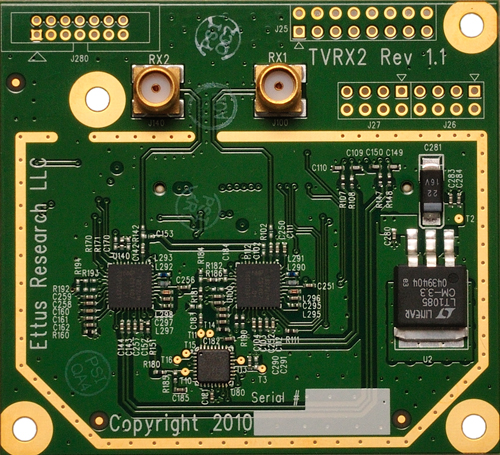

TVRX2 €  222.00 TVRX2 Dual 50 to 860 MHz Receiver. (UHD Driver support only.) (782754-01) TVRX2 datasheet TVRX2 Schematics PDF

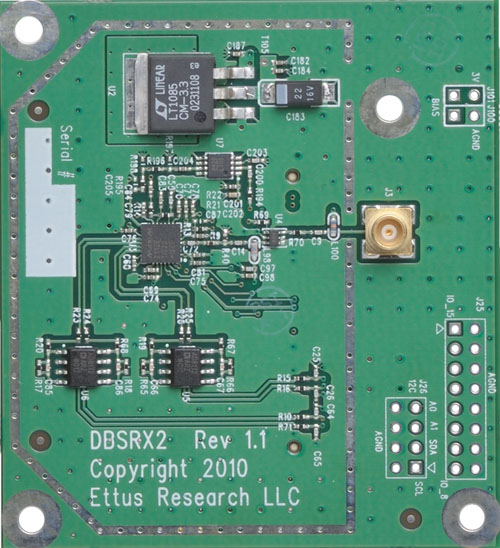

DBSRX2 €  165.00 DBSRX2 800 MHz to 2.4 GHz Receiver (UHD Driver support only.) (782758-01) DBSRX2 datasheet DBSRX2 Schematics (.pdf) DBSRX2 Schematics (.sch)
RFX900 €  302.00 RFX900 800-1000MHz Transceiver, 200+mW output (782757-01) RFX900 datasheet RFX900 Schematics PDF RFX900 Schematics CAD (gEda) rev 11655
RFX1200 €  315.00 RFX1200 1150 MHz - 1450 MHz Transceiver, 200+mW output RFX1200 datasheet RFX1200 Schematics PDF RFX1200 Schematics CAD (gEda) rev 11655

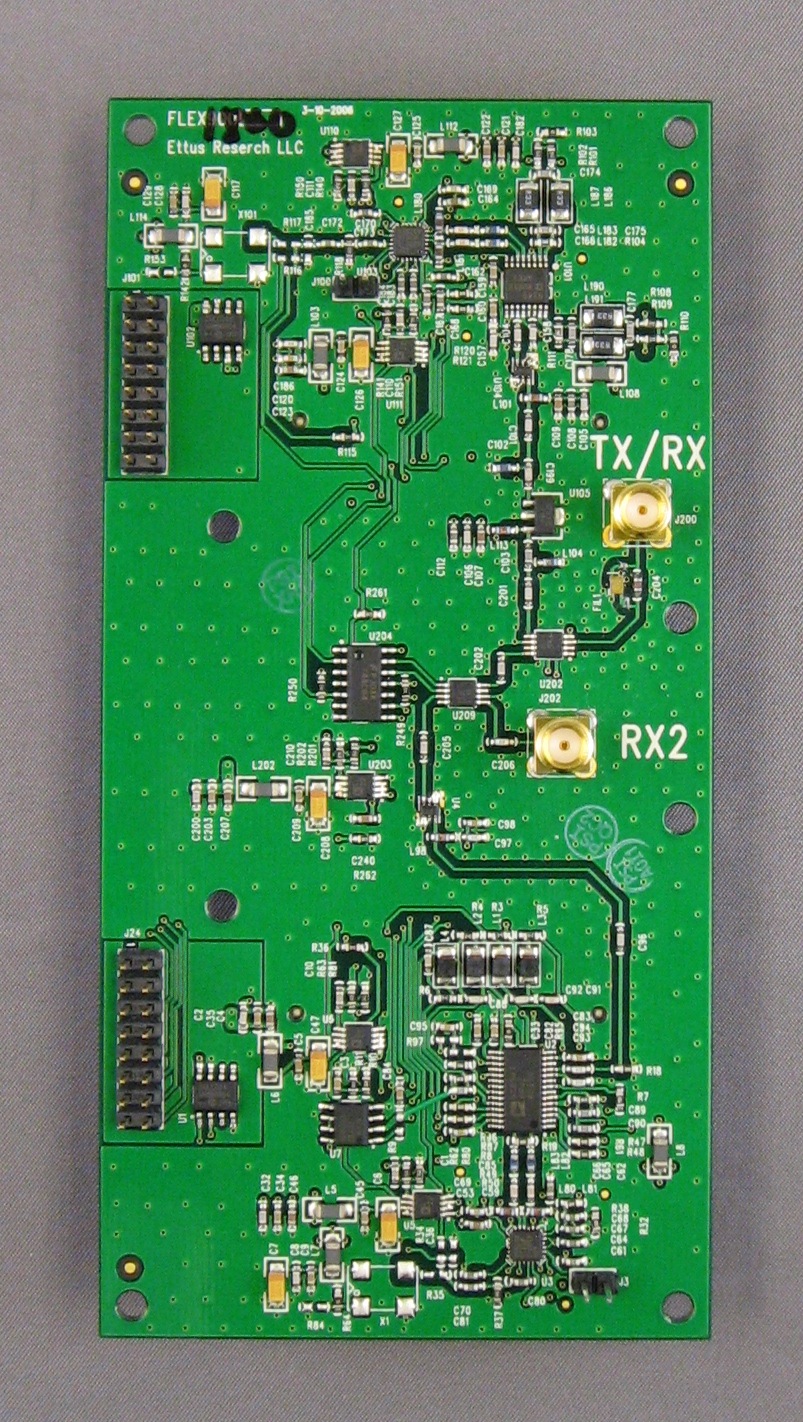

RFX1800 €  302.00 RFX1800 1.5-2.1 GHz Transceiver, 100+mW output (782755-01) RFX1800 datasheet RFX1800 Schematics PDF RFX1800 Schematics CAD (gEda) rev 11655

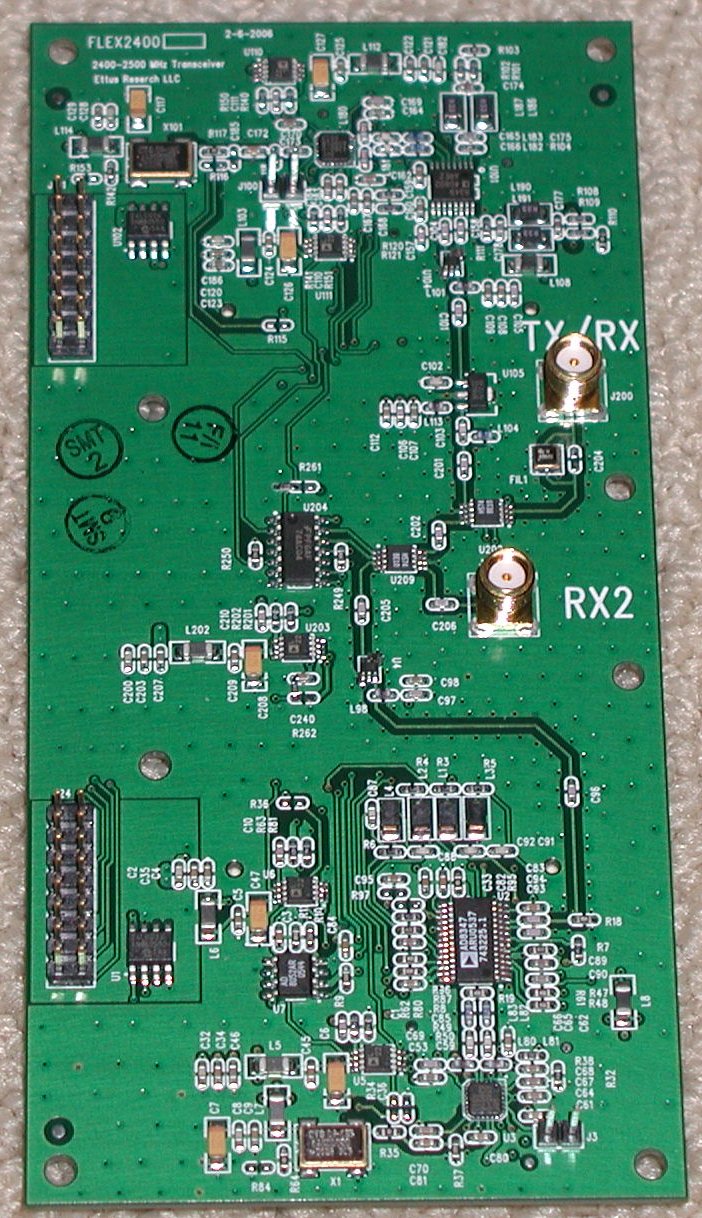

RFX2400 €  264.00 RFX2400 2.3-2.9 GHz Transceiver, 50+mW output (782756-01) RFX2400 datasheet RFX2400 Schematics PDF RFX2400 Schematics CAD (gEda) rev 11655

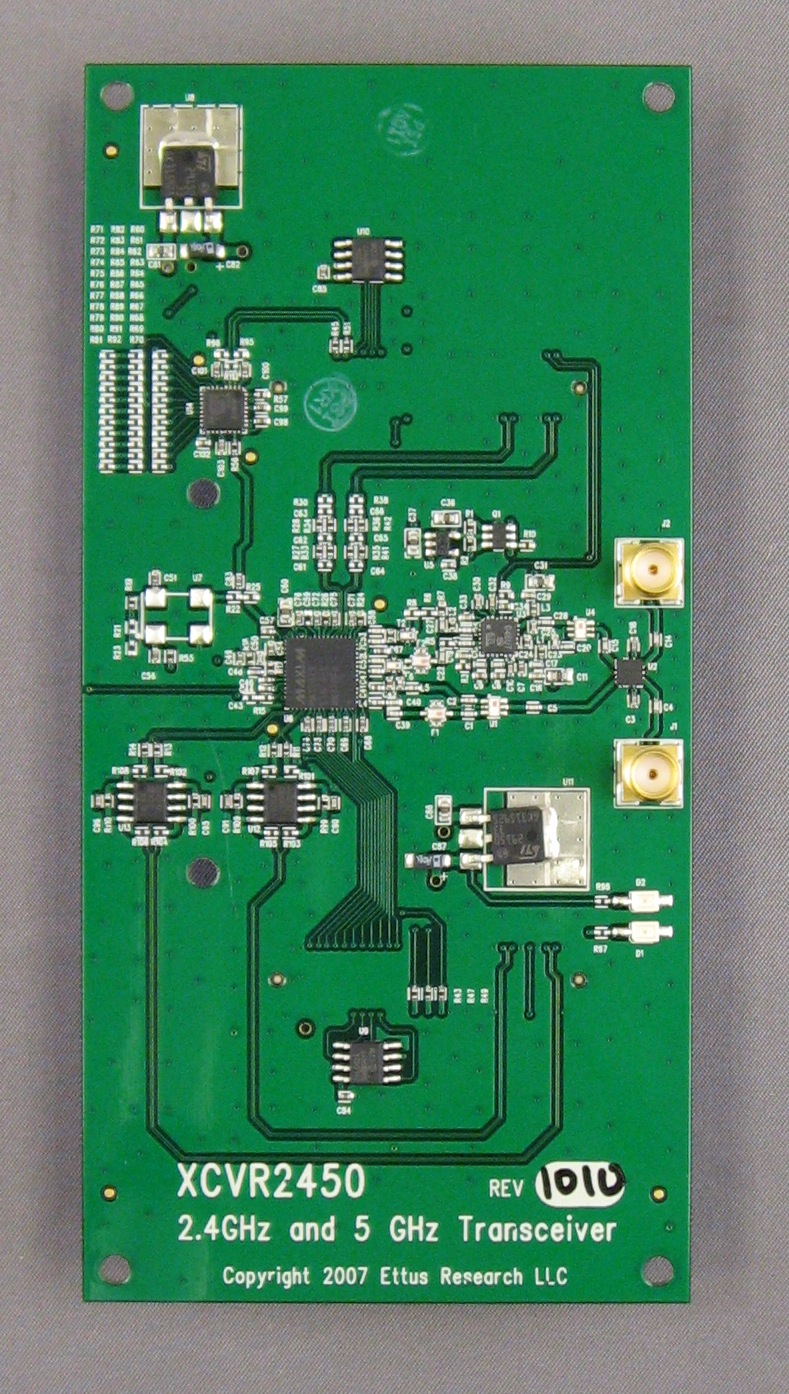

XCVR2450 € 439.00 XCVR2450 2.4-2.5 GHz and 4.9 to 5.85 GHz Dual-band Transceiver. (782762-01) XCVR2450 datasheet XCVR2450 Schematics PDF

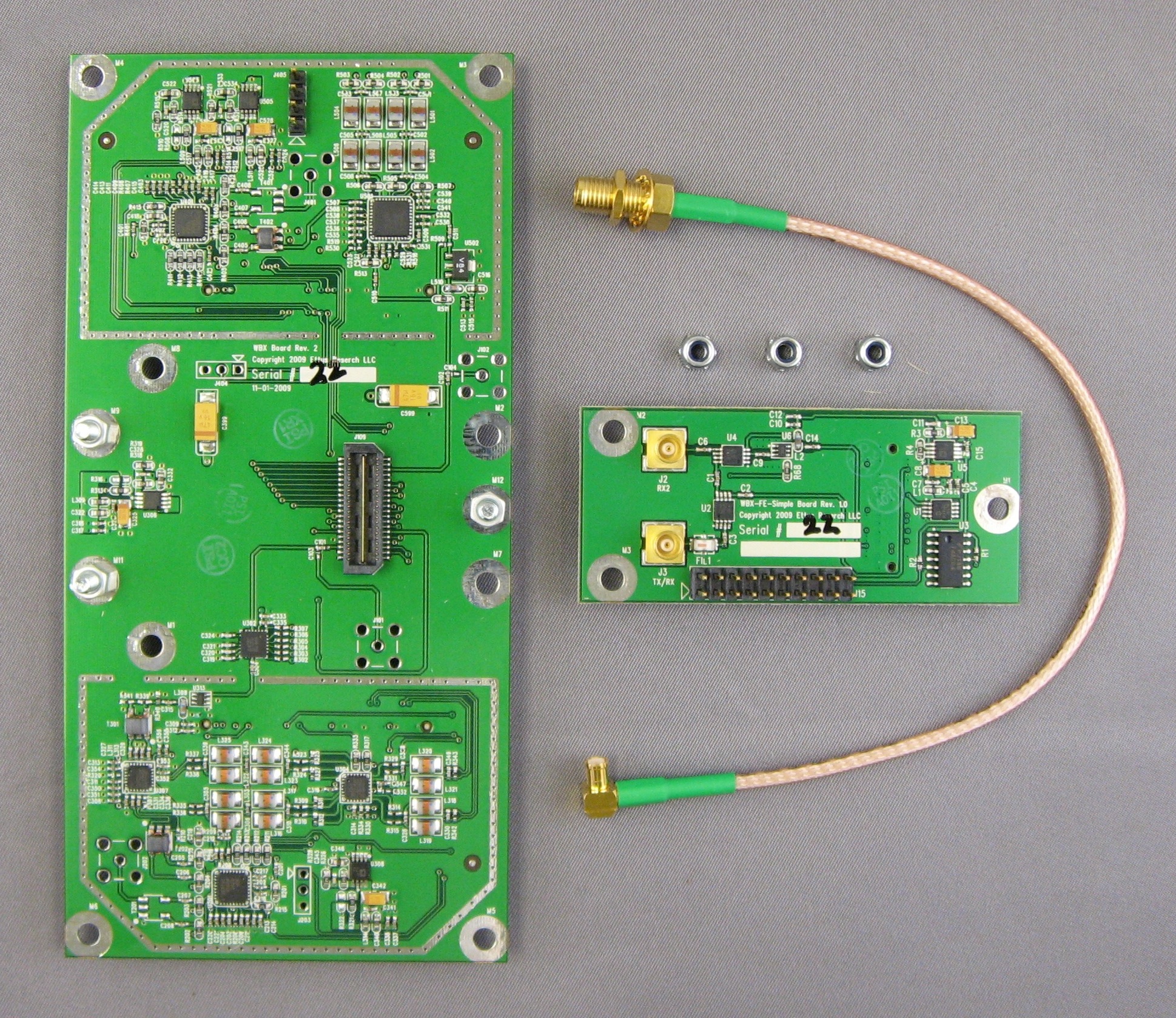

WBX € 584.00 WBX 50 MHz to 2.2 GHz Transceiver. (783352-01) WBX datasheet WBX Schematics PDF

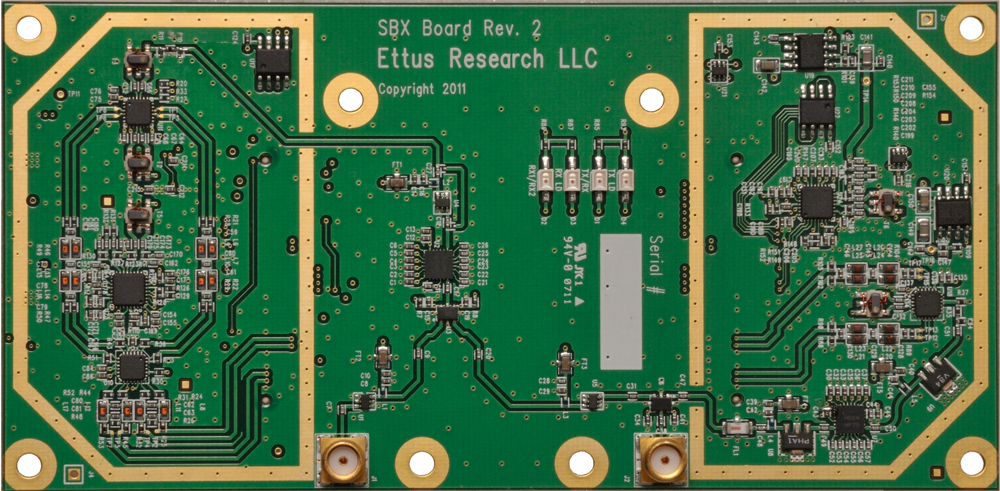

SBX € 524.00 SBX 400 MHz to 4.4 GHz Transceiver. (UHD Driver support only.) (782761-01) SBX datasheet SBX Schematics PDF

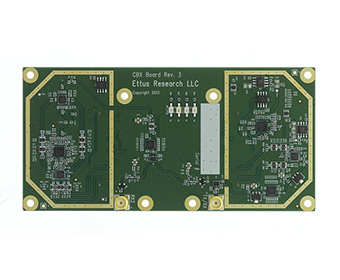

CBX € 524.00 SBX CBX USRP DAUGHTERBOARD (1.2 -6.0 GHZ) (782760-01)
UBX-40 € 861.42 ubx40 UBX-40 USRP DAUGHTERBOARD (10 MHz - 6.0 GHZ, bandwidth 40 MHz, for use with N200/N210) (783774-01) UBX-40 product page UBX daughterboard manual UBX Datasheet
UBX160 € 1119 ubx160 UBX-160 USRP DAUGHTERBOARD (10 MHz - 6.0 GHZ, bandwidth 160 MHz, for use with X300/X310) (783775-01) UBX-160 product page UBX daughterboard manual UBX Datasheet
Antennas
LP0410 €  32.00 LP0410 LP0410 400 MHz tot 1 GHz Log Periodic wideband PCB Antenne, 5-6dBi Gain (782774-01) Requires SMA-SMA cable to mate with USRP front-panel connectors.

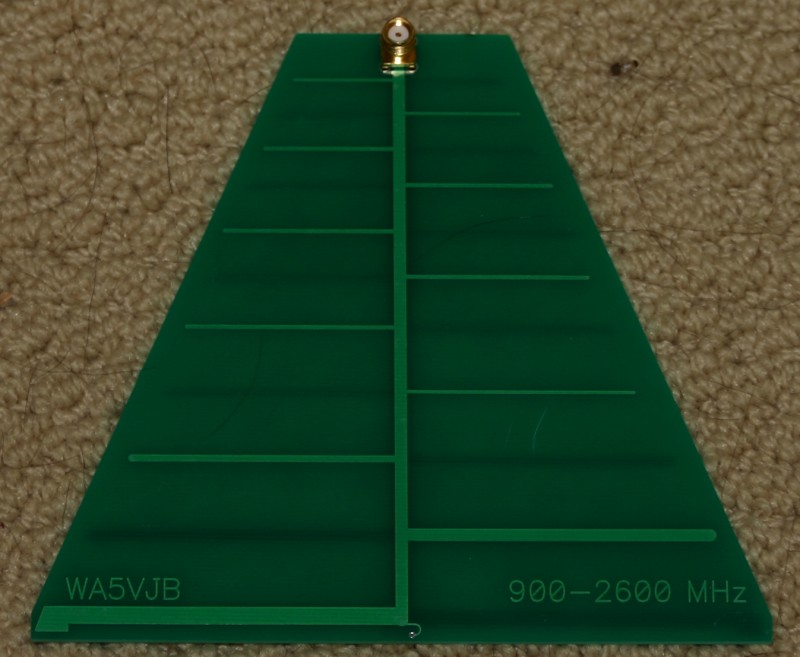

LP0926 €  22.00 LP0926 LP0926 900 MHz tot 2.6 GHz Log Periodic PCB Antenne, 5-6dBi Gain, Ideal for DBSRX LP0926 DatasheetRequires SMA-SMA cable or semirigid to mate with USRP front-panel connectors.

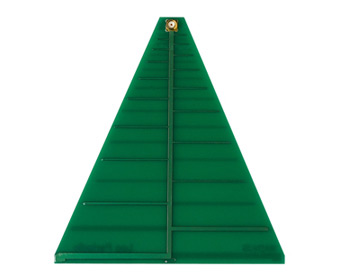

LP0965 €  32.00 LP0965 LP0965 900 MHz tot 6.5 GHz Log Periodic PCB Antenne, 5-6dBi Gain (782775-01) LP0965 DatasheetRequires SMA-SMA cable or semirigid to mate with USRP front-panel connectors.
VERT900 €  36.00 VERT900 824-960MHz, 1710-1990 MHz Quad-band GSM/Cellular/PCS and ISM Band Vertical Antenna, 3dBi Gain, 9 Inches.(782773-01)

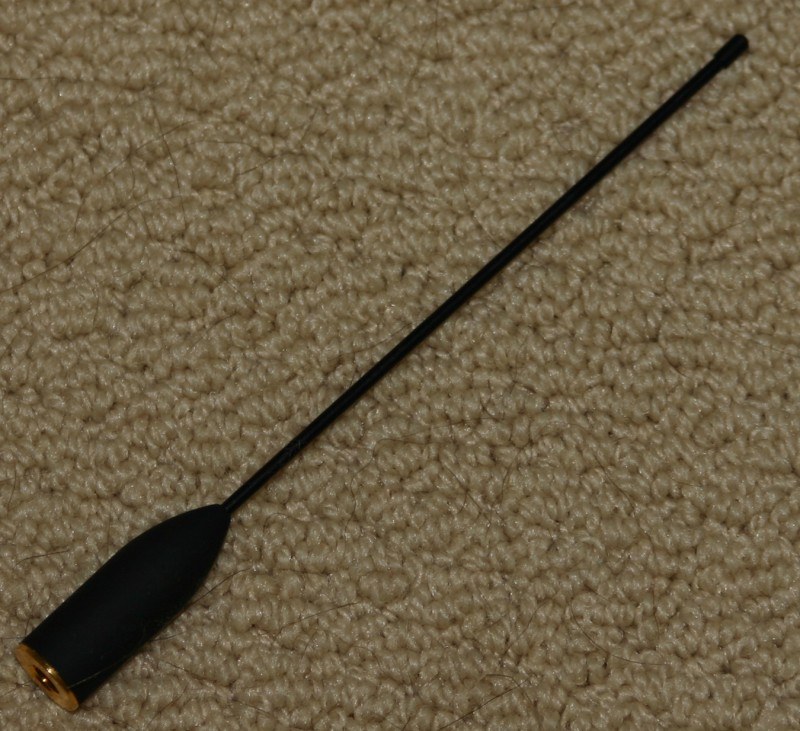

VERT400 € 32.00 VERT0412 144MHz, 400 MHz, and 1200 MHz Tri-band 7-inch vertical antenna 783074-01
VERT2450 €  27.00 Dual Band 2400-2480 Mhz and 4.9-5.9 Ghz Vertical Antenne, 3dBi Gain. (783075-01)
Accessories
smabnc50 €  19.00
SMA-M to BNC-M Cable (50 cm)
smasma50 €  19.00
SMA-M to SMA-M Cable (50 cm)
smasma25 € 19.00 SMA-m-SMA-m-25cm SMA-M-SMA-M-25cm.txt
SMA-M to SMA-M Cable (25 cm)
sma_bulkhead € 16.00
(782769-01) SMA-M to SMA-F bulkhead cable (20 cm) for use of most daughterboards in casing.
f_bulkhead € 19.00
F-M TO SMA-F BULKHEAD cable (20 cm)
mcx_bulkhead € 16.00
(782767-01) MCX-M TO SMA-F BULKHEAD cable (20 cm) for WBX daughterboard
More information on USRP and daughterboards
Universal Software Radio Peripheral (USRP)
Brochure for whole USRP productline
USRP Daughterboards
USRPClockingNotes
Getting started with the USRP and Gnuradio
USRP1 ADC datasheet
USRP1 FPGA Datasheet
USRP en Gnuradio links
Information of USRP manufacturer

* VAT

All prices are excluding VAT. We do not charge VAT for ICT transactions (Intra Community Supply Transaction).

All orders from within the EU, but from outside The Netherlands will be an ICT when you order as a company and supply us with your companies (valid) VAT number. When you order as an individual (if you don't supply us with a your companies VAT number) we are obliged to charge 21 % VAT. We also charge 21 % VAT for all sales in The Netherlands

Disclaimer:

Prices are dependant on exchange rates and therefore fluctuate. Please email or use the contact form to get the current price.

Contact info / Impression / Impressum:


Company: Olifantasia
email:
website: www.olifantasia.com

Address: Zandkamp 95
Postal Code: 3828 GE
City: Hoogland
Country: NETHERLANDS

phone: +31 (0)33-4799840
fax: +31 (0)84-8684563

Chamber of Commerce: 32115647
VAT registration nr.: NL1721.44.681.B01

USRP prices and specifications

Here you will find information on prices, specifications and technical details of the USRP, daughterboards and other supplies.

Olifantasia is an official European USRP reseller

On request we can built modified versions of the USRP which can do more or different thing then the standard USRP. We can also develop specialized firmwareversions for you.

Ordering

To order please use our contact form

Please describe the the items you are interested in and your contact details and if you prefer paypal or bank payment. Make sure you tell us the country the items should be shipped to. You will receive an offer by email with payment instructions.
If you are ordering as a company then please let us know your companies VAT number so we can send you and offer without VAT. (Intra Community Supply Transaction)

We also welcome other questions about the USRP, Gnuradio or Software Defined Radio in general.
